QM-DT103 HDMI extender 120m over CAT5e/6 with IR

Quick facts

HDMI: HDMI 1.3
HDCP: Compliant HDCP1.2
Interface: HDMI, RJ45, IR, DC, Reset, Indicator
Highest Resolution up to: 1080P@60Hz
Transmission protocol: TCP/IP
Applications: one to one, one to more over TCP/IP
Transmission distance: 120m over a single Cat5/5e/6 cable
Maximum data rate: 6.75Gbps
Bandwidth occupation: 100Mbps
IR pass-back: Yes
Compact size: 92*70*25mm
Color: Dark Grey

Introduction

The HDMI extender applies MJPG compress technology, transmit HDMI signal from the source up to 120m / 394 feet to your HD display over single CAT5/5e/6 cable. It supports highest resolutions up to 1080P@60Hz, support IR pass-back function, and the extender connect with Ethernet switch to Distribute & Extend HDMI signal to long distance with clean and compact installations.

Features

HDMI 1.3 version, HDCP 1.2 version.
Support video resolution up to 1920*1080@60Hz;
Transmits HDMI video and audio signals up to 120m over a single CAT5E/6 cable;
Support over TCP/IP, one to many via Ethernet switches;
Support IR pass-back function;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Specifications

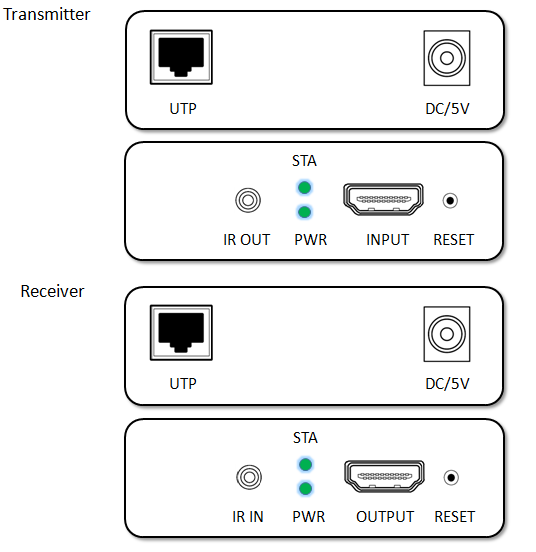

Panel

Package list

HDMI transmitter ……………………….……. 1 pcs
HDMI receiver …………………………………. 1 pcs
IR TX/RX terminal …………………………….. 1 set
Power adapter ……………………………….... 2 pcs
User manual
